QUICK3DPLAN FOR MAC MAIN FEATURES


(NOTE: Quick3DPlan« for Mac and Quick3DPlan« for Windows have the same features.)

Quick3DPlan« is the quickest and easiest kitchen design software available. You won┤t believe how easy it is to use. Find below a short list of Quick3DPlan« main features:
  • Easy to use and easy to learn.
  • Design in centimeters or millimeters with a European catalog or in inches with an American frameless catalog.
  • The catalogs include thousands of cabinets with customizable dimensions and different models of doors, knobs, handles and finishes. There are dozens of accessories (tables, chairs, stools...) and appliances.
  • Modify the design directly on the screen by moving the cabinets with the mouse. You can also double click on a cabinet, accessory or appliance and change its dimensions or replace it with a different model.
  • You can use two windows to design. One with the 2D floor plan and the other one with a 3D image with lights and finishes. You can insert, move and modify items on any of them.
  • Generate a list of cabinets, appliances and accessories that can be printed or exported to Excel«.
  • Design modular furniture, fitted wardrobes and closets by selecting among a large number of doors, adjust the structure and add shelves, drawers, dividers, accessories to the inside...
Main features of Quick3DPlan 5 version 3 for Mac, easy and affordable professional 3D kitchen design software for Mac OSX.

NEW IN QUICK3DPLAN 5 VERSION 3!

Quick3DPlan« 5 version 3 for Mac comes with new and improved functions. Most of them are geared to increase design flexibility and to enhance the design presentation. Here are some highlights of what is new in Quick3DPlan« 5 version 3 for Mac:

 Architecture

New tiles, bricks, colors and wooden floor have been added to the architecture material catalog.

New architecture material

New option to erase a wall cut-out:

New option to erase a wall cut-out

 Furnishing

New "up" and "down" arrows in the furniture insertion window to place a new cabinet on top of or below another cabinet automatically. In the accessory insertion window, a new "up" arrow allows inserting an accessory on top of another accessory, appliance or cabinet automatically without changing the elevation value.

New furniture insertion options

The material catalog includes new woods, colors, fabrics, granites and a selection of materials from Silestone, Dekton and Egger.

New materials: colors, fabrics, granites, etc.

New sink models, mainly round sinks, have been added to the appliance catalog:

New sink models

New high quality blinds and curtains have been added to the accessory catalog:

New high blinds and curtains

A sink wider than the sink cabinet can be inserted with the bowl centered on the cabinet and the drainer on the unit beside it.

New rounded sinks

 2D

Rotate shapes New predefined shapes useful to design countertops. They can be resized before insertion and rotated once inserted:

New predefined shapes

Erase a wall or a cabinet dimension New option to erase a dimension automatically inserted by Quick3DPlan« on a wall or a cabinet.

 Front view

New front views with dimensions New front views with dimensions automatically generated. The dimensions can be erased or moved. Once adapted to the designer requirements, it can be saved as an image or printed.

Front view with dimensions automatically generated

 Top from shape

Worktops from shape You can create worktops using predefined shapes. Once created, there are several options such as move, rotate, change material, adjust thickness or make a diagonal cut.

Worktops using predefined shapes

Cut corner New option to make a diagonal or curved cut on worktops.

Diagonal or curved cuts on worktops

 Customization

Now the cabinet catalogue can be customized. The user can change the dimensions of the different types of cabinets and save the changes in the program:

Catalog editor

 Render and materials

There are 10 lights in the room that can be adjusted and moved separately:

Lights window

 Image editor

New "oil" filter to create oil-painting looking images:

New oil filter

 Others

Cabinets can be locked Cabinets, accessories and appliances can be locked in order to prevent unintended movement with the mouse.

A new menu appears when right-clicking on a cabinet, appliance or accessory. The menu allows you to edit, rotate or erase a selected unit among other options.

New right click menu


 General Features
Tabs: The new Quick3DPlan« includes an updated interface with tabs that show all the available options for architecture, furnishing, views... reducing the number of mouse clicks.

New interface with tabs

Open autosaved file and Import from autokitchen Express

Files: With only one click you have access to projects designed with autokitchen« Express on an iPad and to the security copy that Quick3DPlan« saves in case the program closes down unexpectedly.

Print: Quick3DPlan« includes a new print preview window for images and reports. You can enter your company name, company logo and page footer.

New print preview window

autokitchen Express 2: You can open a project, developed on an iPad with autokitchen« express 2, and finish it with Quick3DPlan« on your computer.
autokitchen« express 2

Visualizaciˇn 2D o 3D de la cocina
You can design in 2D or 3D with Quick3DPlan«, and go back and forth between the two. It generates a color or B/W floor plan with dimensions and 3D perspectives with finishes and lighting.

Quick3DPlan, 2D kitchen view

Quick3DPlan, 3D kitchen view

Every perspective can be saved
Achieving the perfect perspective is simple using the mouse to move the camera around the kitchen. You can save with a name as many positions of the camera as you want.
Tool to draw architecture
You can select from a list of room shapes and change the dimensions, or you can draw your own walls of any length and angle. You can also insert columns, knee walls, doors, and windows of any dimension.
Wide variety of materials: Paintings, tiles, marble, etc.
More than 80 materials for the walls and the floor, including paints, tiles, marbles, parquets ...
Extensive universal catalog of cabinets
Quick3DPlan« has an extensive universal catalog of more than 3000 cabinets, 18 door styles and 12 door pulls.
Tools to modify the cabinets
Cabinet dimensions can be modified before or after placement in a design. You can select the door and pull model for a specific cabinet. Crown molding and light rails can be placed on wall cabinets and countertops, backsplashes and toe kicks on base cabinets.
Multiple finishes for cabinets and countertops
There are 130 cabinet and door finishes including woods and colors, and 150 countertop finishes like marble, granite, stone, wood and colors.
The appliances dimensions can be changed
Quick3DPlan« includes appliances like refrigerators, faucets, sinks, hoods, washer-dryers, dishwashers, ovens and microwaves. Their dimensions can be changed before or after insertion.
Export the list of cabinets to Excel.
When you are finished with the design, Quick3DPlan« will generate a list of cabinets, appliances and accessories, including the reference code, description and dimensions. You can print this this list or open it with Excel«.

The user preferences allow you to change the design units and the language (Spanish or English) without closing the program. When you change the design units, you also change the catalog. If you select inches, the available catalog will be an American frameless catalog. If you select centimeters, the catalog will be European.

The time between security copies (autosave) can also be configured from the user preferences. In the case of an unexpected close you can recuperate the last project by selecting the option "Open autosave file".

Autosave settings

The Unit Style window allows you to select the door style, the handle and the finishes of the door, handle, box, baseboard (toe-kick), crown molding, light rail, countertop and backsplash. These changes can be done for all the cabinets in the kitchen or just for one.

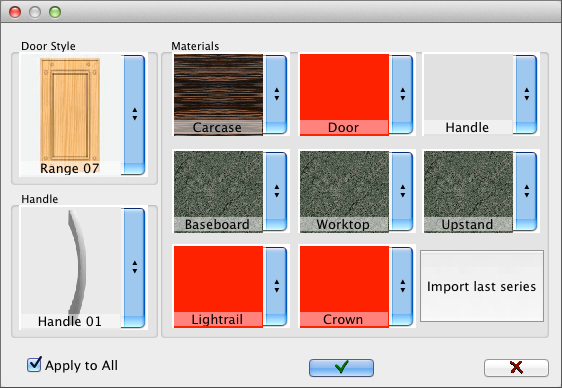

New materials window

The cabinets are inserted with the last selected materials and door style.
You can change the materials of the different parts of the accessories (tables, chairs, shelves, panels, bottles, plants ...).

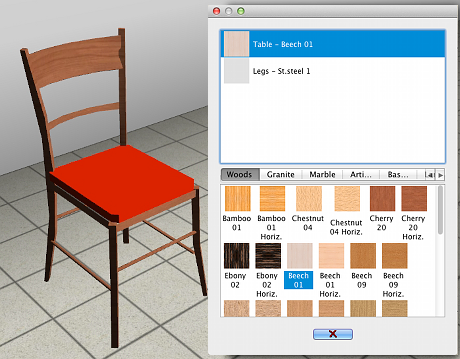

Change the accessories material

More than 150 materials available: colors, woods, Formica...

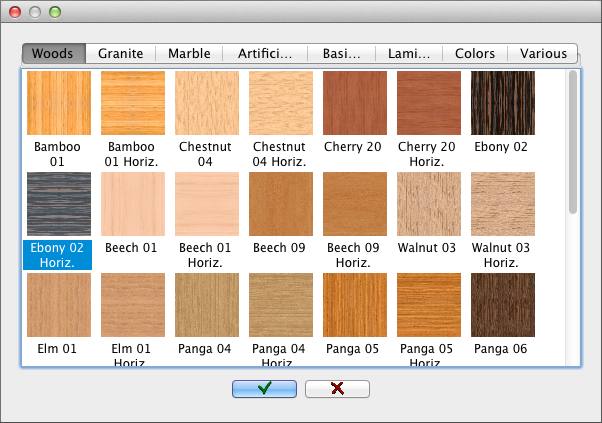

New materials available

New button to change doors and windows in the drawing:
  • Move door/window.
  • Change dimension or change model of door/window.

Architecture

The walls can be deleted and drawn again.

While drawing walls the program shows two lines with the wall thickness and its length. The wall length can be set with the mouse on the screen or by typing its value.

When inserting a door or window its position can be set with the mouse or by typing the distance to the wall corner.

The 2D plan shows the distance between doors, windows and wall corners.

Doors and windows dimensions

Edit wall Edit wall: Allows you to change the height and thickness of the internal and external walls of the room.

Move wall Move wall: Allows you to move the external walls to change the room size. Center door and window

Center door and window: There is a new option to center a door or a window on a wall without having to enter any distances.



Collision with doors and windows

Collision with doors and windows: When inserting a cabinet, appliance or accessory, Quick3DPlan« prevents it from colliding with doors and windows, and shows the remaining distance to the nearest door and window while dragging the item.

Draw room

Draw room: A new dialog where you can select your room layout among five options or you can draw the room manually by clicking on the screen.



Move pillar Move pillar: You can move the pillars of the kitchen accurately by entering the distance with the keyboard.

New command to place a cornice (crown molding) and/or a plinth on a wall automatically. Once inserted, you can change their material with a specific command located in the Photo tab.

Architecture moldings

New command to apply a combination of materials horizontally to a wall. This new feature is very useful to create a backsplash.

Materials combination

The Turn on/off wall command has been improved making wall selection easier, fixing all corners and saving wall status along with the project so that it does not show hidden walls when opening it again.

Toolbar for door and window insertion

New toolbar for door and window insertion that allows you to define its position on the wall with a distance to the right or left corner.

New architectural door and window models:

New architectural door and window models

New floor and wall materials:

New floor and wall materials

New internal walls with several segments. Accurate control of the length of each segment and its position on external walls. Now doors and windows can be inserted on the internal walls.

New rectangular openings on internal and external walls.

The new command to hide walls in the design allows you to design open kitchens. The removed walls will disappear from the 2D and the 3D views.

New architecture options

The new Quick3DPlan« includes new door models like double doors and patio doors. The number of window models has also been increased.

New doors

2D colors: You can chose between white or cream color for the background. You can also print your floor plans in black and white or solid colors.

2D colors

Cabinet label: You can turn on and off cabinet labels on the floor plan. These labels are automatically inserted with the cabinet depending on its insertion order and are also included in the report printing.

Cabinet label

Distance between two points Distance between two points: New tool to calculate the distance between two selected points in the design.

Different colors can be selected to fill the following cabinets and appliances on the floor plan:
  • Base and tall cabinets.
  • Wall and "on the counter" cabinets.
  • Fridges.
  • Hoods.
  • Sinks.

The walls are filled in gray color and the doors and windows show the opening on the wall.

New 2D plan with colors

The floor plan can also be shown with lines in b/w without filling the items.

Insertar Textos
Tool to add text to the 2D plan in different colors.
After inserted the text can be moved with the mouse, it can be modified by double-clicking on it and deleted with the rubber.

Text insertion window

Drawing of separate lines controlling thickness, color and with the possibility of adding one or two arrows at the extremes. Insertion of shapes: circle, square, rectangle and polygon with any number of sides.

2D notes

New option to change 2D color view to b/w view with only one click.

The countertop is now shown in 2D view in a translucent color that can be customized. If the countertop is hidden, the 2D view looks the same as in previous versions.

2D Colors

While moving a cabinet, accessory or appliance with the mouse, the program shows the free distance on both sides.

Free distance on both sides of the object

Once inserted, you can:
  • Change/substitute a cabinet.
  • Change/substitute an accessory.
  • Change/substitute an electrical appliance.

Edit cabinet

The new Quick3DPlan« includes new cabinets, hoods, sinks, faucets, ovens and cooktops. It also includes new accessories like brackets, plug bases and switches.

New elements in the catalog

Insertion options

Insertion options: New special insertion options that allow you to insert a cabinet easily and accurately in the following cases:

Insertion options
  • Corner cabinet insertion adjusted to the wall corner angle.
  • Insert island cabinet at a specified distance from two selected walls.
  • Insert cabinet centered on a selected wall.
  • Insert cabinet centered on a selected window.
  • Insert cabinet centered on another selected cabinet aligned on the back.
  • Insert cabinet centered on another selected cabinet aligned on the front.
New catalog in mm

New catalog in mm: Apart from centimeters and inches you can now also design in millimeters with a European style catalog.

Cabinet catalog update: The American (inches) and European (mm and cm) catalogs have been updated with cabinets requested by our customers: new base cabinet with a wine cooler or small fridge, end cabinets with two doors, curved end cabinet, soffit...

Cabinet catalog update

Accessory catalog update: New tables, chairs, stools, glassware, jars, crockery...

Accessory catalog update

More than 80 new accessories in a new bedroom library: beds, bunk beds, bedside tables, shelves, drawers, chairs, tables, laptops, cushions, etc:

New accessories in a new bedroom library

Preview of moldings models

New preview of all available molding models with small images.

Preview of moldings models

Extend a worktop on a wall

New option to extend a worktop (countertop) automatically on a wall.

Extend a worktop on a wall

Preview of handle models

When selecting the handle model in the series dialog, all available models are shown in small images.

Preview of handle models

Cabinet doors:

  • Door material is not stretched anymore. The frame width of a door is identical on a tall cabinet and a drawer cabinet.
  • Glass doors are transparent. You can insert accessories inside the cabinet and see them through the glass.
  • The number of mullions on mullion doors depends on door dimensions.

Higher quality of the doors representation

Two new gas and electrical water heaters have been added to the appliance catalog:

New gas and electrical water heaters

Change molding model

Change molding model: You can change the crown molding and light rail model for a selected cabinet or for all the cabinets in the design. There are 6 new light rail models and 8 new crown molding models.

Molding model

Change molding height

Change molding height: You can modify the height of the baseboard, crown molding, light rail and backsplash and the countertop thickness for a selected cabinet or for all cabinets in the design.

Change molding height

The new Quick3DPlan« includes tools to edit the moldings and the countertop. Now you can add a return molding to a cabinet. You can also change the countertop overhang value for any side of a given countertop.

Edit mouldings: crown and light rail

Edit mouldings: backsplash, baseboard and counter

New tool to design modular furniture and wardrobes:

New tool to design closets

You will be able to select materials, mouldings, door systems and models and customize the structure with the desired number of modules and dimensions.

Select materials, mouldings, model and door system

Design the interior of a wardrobe or closet in a quick and precise way adding shelves, drawers, dividers, accessories, etc.

Design the interior of the closet

Insert a wardrobe in a room and finish the design with the rest of furniture:

Insert the closet in the room

Display filters allow you to show or hide walls, floor, cabinets, accessories, appliances, text, and dimensions...

Ocultar/Mostrar objetos

Enhanced image quality: The 3D view shows the shadows generated by the inserted items. The quality of doors, handles and accessories has been improved. Materials have also been updated.

Enhanced image quality

Shadow intensity

Shadow intensity: New tool to modify shadow intensity to make it darker or lighter. Changes are instantly shown on the screen and you can see how shadows change while moving a light.

3D wall and floor visualization has been improved to show softer lights and shadows.

Highest image quality, more softness of light and shadow

On/Off Shadows

When starting a new project, all lights are active by default. The shadow of each light can be turned on/off separately.

Lights window

Add different filters and edit brightness, contrast or saturation with the new image editor:

Image editor

Quick3DPlan« for Mac creates a list of cabinets, appliances and accessories with description, width, depth, height and door swing. This list can be exported to Excel.

List of cabinets, appliances and accessories
